UL approved MICRO Switch (as same as cherry E13 )

Product Categories

Jiashan Shengfeng Plastics & Electronics Co., Ltd

Contact Now

Place of Origin : Zhejiang, China (Mainland)

Brand Name : SFC

Model Number : SFC-HY67

Max. Current : 18A

Max. Voltage : 125/250VAC

Operating Temperature : -25-85

Mechanical Life : 50000

Contact Now

Key Specifications/Special Features:

Model number: SFC-HY67 series
Voltage resistance: 1500V AC, 1 minute
Operating temperature: 85°C
Operating lifespan: more than 50000 cycles
Contact rating:
- UL, cUL-18A 125V AC, 15A 250V AC
- 15A 277V AC, 2HP, 125 or 277V
- 18 (12)A 250V AC TUV
Switch crust dimensions: 12mm

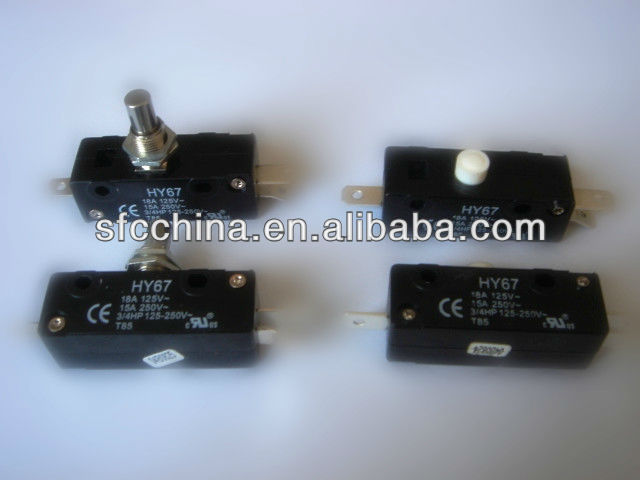

UL approved MICRO Switch (as same as cherry E13 ) Images
