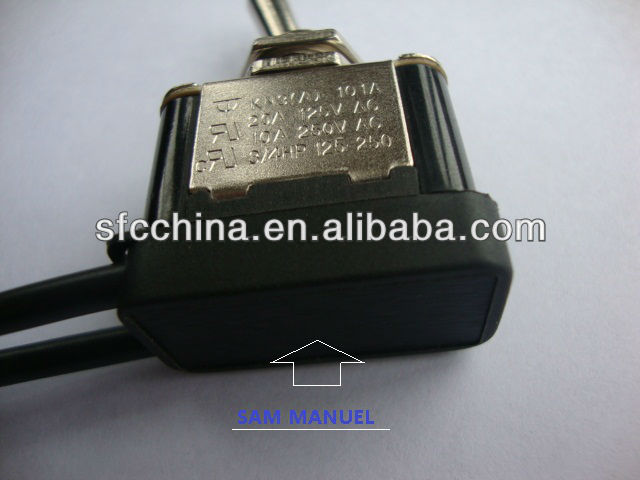

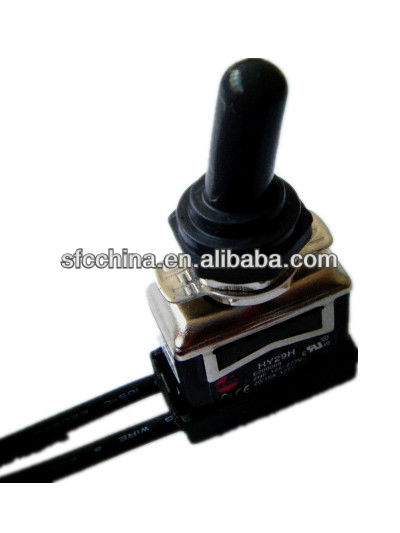

UL approved Toggle Switch with waterproof boot and 12" wire

Product Categories

Jiashan Shengfeng Plastics & Electronics Co., Ltd

Contact Now

Place of Origin : Zhejiang, China (Mainland)

Brand Name : SFC

Model Number : SFC-HY-29H

Max. Current : 20A

Max. Voltage : 277VAC

Mechanical Life : 50000

Contact Now

Key Specifications/Special Features:

Model number: SFC-HY29 series
Voltage resistance: 1500V AC, 1 minute
Operating temperature: 85°C
Operating lifespan: more than 50000 cycles
Contact rating:
- UL, cUL-20A 125V AC, 15A 250V AC
- 15A 277V AC, 2HP, 125 or 277V
- 18 (12)A 250V AC TUV
Switch crust dimensions: 14x10mm

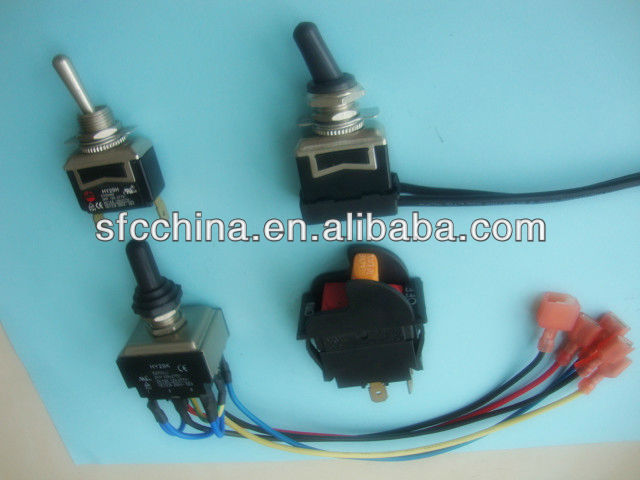

UL approved Toggle Switch with waterproof boot and 12" wire Images
